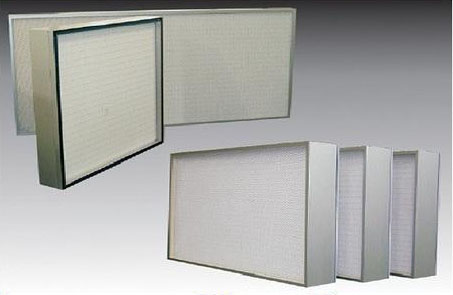

Industrial HEPA Filters
We manufacture and supply a wide range of Industrial HEPA Filters which has high filtration efficiency. These are manufactured by hemmed edges of aluminum separators in order to provide rigidity & uniform air flow. We do quality analysis and testing of these Industrial HEPA Filters before we handover this to our valuable clients. We have specialized team of experts who do quality checking under certain parameters that meets international standards.
Salient features are as follows:
- Aluminum, S.S and G.I is used to make the body of HEPA filter
- Used in biomedical purpose, vacuum cleaners, nuclear industry, aerospace, nuclear power, pharmaceutical processing, health care, hospitals, nuclear fuels, and electronic micro circuitry (computer chips).
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Air HEPA Filters
Depending upon the needs and demands of the consumers we offer a high range of Air HEPA Filters products to our honoured clients. We offer these filters which are used for filtration of dust and moisture accurately. These are available at clients required sizes and affordable prices. Our filters are widely used in
Food,
Pharmaceutical,
Paint shop,
Hospitals,
Chemical,
Gas turbine,
Aerospace etc.
Our business is highly involved in offering a wide range of reliable AIR HEPA Filter to our valuable clients. These are available in different sizes based on the requirements of the clients. Our range is tested by our experts on various parameters to offer an unmatched range to our clients. Clients can avail these at reasonable prices in the industry.
Sizes:
-
All sizes available in GI/MS Cassette/Flanged construction
-
Available in flow capacity range up to 2000 CFM
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Semi HEPA Filter
Suitable for:
- Air filtration of 0.3µ to 1µ w particles.
- Secondary filtration for in Critical Clean room Industry Such as Vaccine, Production Work, Injection filling Work etc.
- Final filtration in Minor 0.T S & in-patient-care, Photo Film Industry.
Features:
- Filter media micro fiber glass snd paper deep pleasted panel
- Media support aluminum foil / hot melt
- Frame material aluminum / GI
- Frame type box / flange / channel
- Max. Op. Temp. 80oC
- Sealant epoxy sealed
- Gasket syn rubber
Other Information
- Pay Mode Terms: T/T (Bank Transfer)

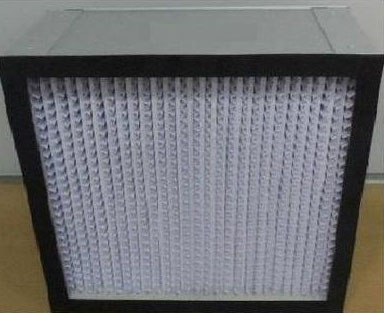

Deep Pleat HEPA Filters
Being a client centric organization, we are involved in manufacturing and supplying a wide range of deep pleat hepa filters. These specially designed and developed filters are available in various dimensions and technical specifications. Entire range of our deep pleat hepa filters is made under the firm direction of quality controllers, who ensure us for the delivery of 100% defect free range at our clients end.
Features:
- Low resistance
- Large dust holding capacity
- High efficiency
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
ULPA Filters
Specifications:
- Efficiency: 99.9995%
- External Frame: Aluminium
- Sealant: Polyurethane
- Separator: Hot-melt Adhesive
- Filter Media: Super fine Fiberglass
- Max Operating Temperature: 80 degree C
- Max Operating Humidity: 100%
For Sizes please inquire
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Mini Plate HEPA Filter
As per the variegated requirements of our clients, we are offering a broad collection of Mini Plate HEPA Filter. The offered filters has the ability to capture 99. 97% of particles 0. 3 microns in diameter. These products are manufactured using excellent quality raw material and latest technology by our skilled professionals. In order to ensure quality, these products are stringently tested on various parameters by our experts. Apart from this, remarkable quality and easy installation increase the demand of our offered range in the market.
Features:
-
Low pressure drop due to pleated configuration
-
Easy to install
-
Good mechanical strength
Technical specifications:
-
flange type & box type
-
customized sizes are available on request
-
filtration rating: 0. 3 micron & more
-
frame material: ss 304 / gi (galvanized steel) / aluminum.
-
filtration efficiency: 90 – 99. 9 %
-
filter media: glass fiber media / spun bonded polyester media.
-
Common specifications.
Dimensions (mm) |
Filter area (m²) |
Wind speed at 0.45m/s the resistance(Pa) |
Rated air flow (m³/h) |
width×height×depth |
|||
305×305×69 |
2.7 |
200-220 |
250 |
305×610×69 |
5.5 |
500 |
|
610×610×69 |
11.3 |
1000 |
|
915×610×69 |
17.0 |
1500 |
|
1219×610×69 |
22.7 |
2000 |
|
305×305×90 |
3.7 |
300 |
|
305×610×90 |
7.5 |
550 |
|
610×610×90 |
15.4 |
1100 |
|
915×610×90 |
23.2 |
1600 |
|
1219×610×90 |
31.1 |
2500 |
|
305×305×135 |
3.6 |
300 |
|
305×610×135 |
7.4 |
550 |
|
610×610×135 |
14.7 |
1100 |
|
915×610×135 |
22.0 |
1600 |
|
1219×610×135 |
29.4 |
2500 |
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
High Efficiency Particulate Air Filter
We put forward a broad range of High Efficiency Particulate Air Filter. It isideally suitable for protection against harmful particles emitted from radioactive substances. Our offered filter is manufactured in adherence with the set industry standards using advanced technology and optimum quality raw material. In tune with international quality standard, we provide the entire range in various sizes and specifications as per the requirement of our clients. Our quality controllers perform a series of test on various parameters, in order to ensure the quality of this filter. Apart from this, clients can avail the entire range from us at industry leading rates.
Features:
-
Easy to clean
-
High efficiency
-
Compact size
Technical Specifications :
-
Flange Type & Box Type
-
Sizes Available: 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
-
Customized Sizes Are Available On Request
-
Filtration Rating: 0. 3 Micron & More
-
Frame Material: SS 304 / GI (Galvanized Steel) / Aluminum.
-
Filtration Efficiency: 90- 99. 9 %
-
Filter Media: Glass Fiber Media / Spun Bonded Polyester Media.
-
BS EN 779 CLASS - H10, H11, H12, H13, H14 upto U17
-
Filter Efficiency - H10 - 95 % @ 0.3 micron
-
H11 - 99.9 % @ 0.3 micron
-
H12 - 99.97% @ 0.3 micron
-
H13 - 99.99% @ 0.3 micron
-
H14 - 99.999% @ 0.3 micron
-
Eurovent Class - EU 10, EU 11, EU 12, EU 13, EU 14 upto U17
Applications:
-
Clean rooms for micro component electronic manufacture & assembly.
-
Pharmaceutical processing.
-
Aerospace engineeing.
-
Genetic & biological researh.
-
Biohazard atmosphere.
-
Laminar flow workstations.
-
Bio safe hood { biological safety cabinets}.
-
Hospital operating theaters & intensive care unit.
-
Atomic research.
-
Pre filter stage to ulpa systems.
Performance :
These filters have an efficiency of 99. 97% down to 0. 3 micron of dop aerosol.
Nominal sizes |
Rated flow |
Initial resistance |
610 x 610 x 150 |
850 |
25. 00 |
610 x 610 x 293 |
1700 |
25. 00 |
915 x 610 x 150 |
1250 |
25. 00 |
1220 x 610 x 150 |
1700 |
25. 00 |
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
HEPA FILTERS (Standard Flow)
These Filters are HEPA filters certified to be a minimum of 99.97%, 99.99%, or 99.999% on 0.3μm per Mil. Standard 282. Ultra seal filters are available in a variety of framing materials, galvanized steel, aluminum, stainless steel, and particleboard. Frame types include DTF (double turned flange), single and double-header, box, groove seal, reverse groove seal, and C-style in metal. In wood, frame styles include box, groove seal, single and double-header. Three flow rates are available to meet varying fan capacities, Standard, Low Resistance, and High Capacity The standard models can be utilized up to 220ºF (104ºC), and 100% RH. A High Temperature version is available for temperatures up to 500 ºF (260ºC) for prices call our toll free number. HEPA Filters are designed to meet the critical filtration requirements where airborne contaminants can cause damage in manufacturing processes, equipment, or may cause health hazards. Only materials that meet our stringent quality standards are utilized. All manufacturing steps are closely monitored to insure that every filter will perform as expected.
Certified Efficiencies:
- 99.97%
- 99.99%
- 99.999%
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Absolute Compact Filter
High Performance in Compact Design
Absolute/Compact Filters are designed for use in HVAC/Industrial Applications requiring cleaner air but where HEPA Filtered air is not required. These filters are also known as Efficiency Particulate Air Filter (EPA).
The micro fine glass fibre paper with backing media folded to form deep folds and corrugated Aluminium foil separators used to separate the pleats in the filter pack.
Features and Specifications:
- Maximum utilization of the media
- Longer service life and high dust holding capacity
- Suitable for Variable air flow
- Robust Design
- Media : Micro Fine Glass Fibre (Imported) with backing media
- Frame : aluminium/Galvanised Iron / Stainless steel
- Style : Box / Flange
- Filter Class EN1822 : E10-E12
- Efficiency (%) : 95
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
High Temperature HEPA Air Filter
D.P. Engineers have High Temperature HEPA Filter are designed for the air intake and extract systems of critical applications where high efficiency filtration is necessary. High Temperature HEPA Filter are capable of retaining particulate matter down to 0.01 microns. High Temperature HEPA Filter are available with efficiencies between 95% and 99.999%.
Features:
- Low initial pressure drop.
- High dust holding capacity.
- High cost / performance ratio.
- Wide range of standard sizes.
- Individually leak tested.
Specifications:
Type :
- Deep pleated Flange or Box Type
Casing Construction :
- GI /Aluminum anodized/SS 304
Separators Corrugated :
- Aluminum
Filter Media :
- Micro fiber glass paper (Imported)
- Sealant Polyurethane based
- Gasket Neoprene rubber gasket
Filter Efficiency :
- 99.99% @ 0.3 micron
Applications:
- Fine particulate filtration in
- Hospitals (Operation Theater)
- Clean room applications
- Clean room equipments
Please call on D.P.Engineers Technicians for special grade high temperature (650°C) Hepa Filters (H13 / H 14)
Other Information
- Pay Mode Terms: T/T (Bank Transfer)

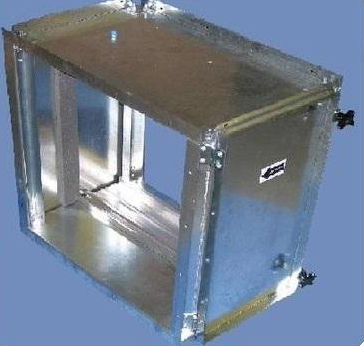

Filter Housings
Air Filter Housings are standard module constructed casings, designed to fit all types Pre, Fine, Pocket, Compact, HEPA and Carbon Filters.
- Modular Design
- Ensures airtight filter installation
- Material Galvanised Powder Coated or Stainless Steel
- Gasket sealed access doors
- Easy Servicing
- Available for different type of filters and sizes
We also Manufacture Terminal Housing for HEPA filters.
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Ulpa Cells Filters
Ulpa Cells Filters are used in situations requiring high or very high level of purity. They are primarily designed as intake filters for low turbulence displacement flow clean room ceilings and clean workbenches.
Typical applications can be found in: microelectronics, semiconductor manufacture, medicine, chemistry, pharmacy, microbiology, film and magnetic tape production, compact disk manufacture, laboratories and the food industry.
- Low initial pressure drop
- High dust holding capacity
- High cost / performance ratio
- Wide range of standard sizes
- Individually leak tested
- Factory extruded, lockable type, 69 mm Aluminium casing
- Compact in size and light in weight
Applications:
- Laminar flow for clean benches & other
- Clean room equipments
- Clean room applications
Construction:
TYPE : Flange or Box.
CASING CONSTRUCTION : Galvanized steel / CRCA powder coated /Aluminium anodized/SS 304.
SEPRATORS : Corrugated Aluminium.
FILTER MEDIA : Micro fibre glass paper (Imported)
SEALENT : Polyurethane based
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
HEPA Filter
We put forward a broad range of HEPA Filter It is ideally suitable for protection against harmful particles emitted from radioactive substances. Our offered filter is manufactured in adherence with the set industry standards using advanced technology and optimum quality raw material. In tune with international quality standard, we provide the entire range in various sizes and specifications as per the requirement of our clients. Our quality controllers perform a series of test on various parameters, in order to ensure the quality of this filter. Apart from this, clients can avail the entire range from us at industry leading rates.
Features:
-
Easy to clean
-
High efficiency
-
Compact size
Technical Specifications :
-
Flange Type & Box Type
-
Sizes Available: 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
-
Customized Sizes Are Available On Request
-
Filtration Rating: 0. 3 Micron & More
-
Frame Material: SS 304 / GI (Galvanized Steel) / Aluminum.
-
Filtration Efficiency: 90- 99. 9 %
-
Filter Media: Glass Fiber Media / Spun Bonded Polyester Media.
-
H14 - 99.999% @ 0.3 micron
These filters are designed to give an efficiency of more than 99.97 % down to 0.3 microns with an initial pressure drop of less than 25 mmwg. Standard sizes available are.
No. | Sizes in Inches | Flow (cfm) |
---|---|---|
1. | 12 x 12 x 6 | 90 |
2. | 24 x 18 x 12 | 750 |
3. | 24 x 36 x 6 | 750 |
4. | 24 x 24 x 6 | 500 |
5. | 24 x 24 x 12 | 1000 |
6. | 24 x 48 x 6 | 1000 |
With Aluminium / SS frames these filters can be supplied in Box Type or Flange type designs. Also these filters are made to confirm and meet the specifications of international standards
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
