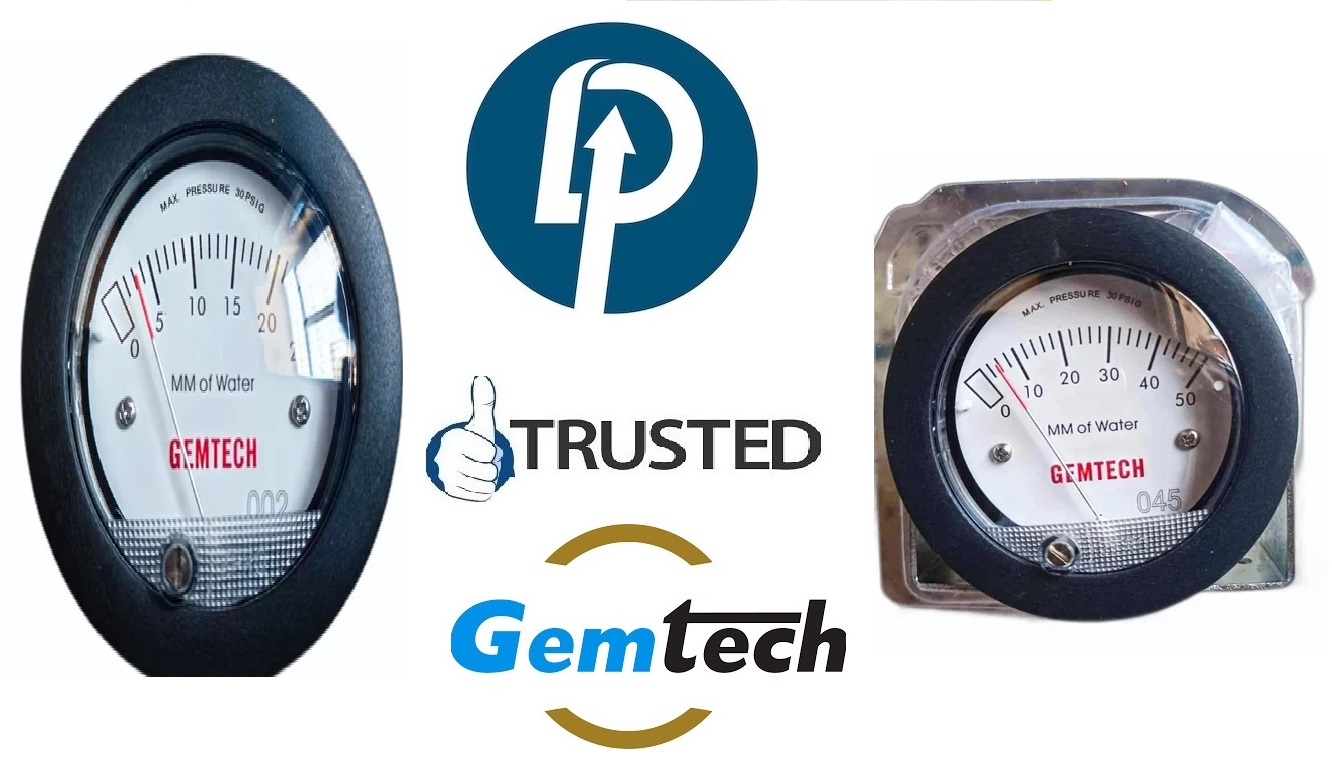

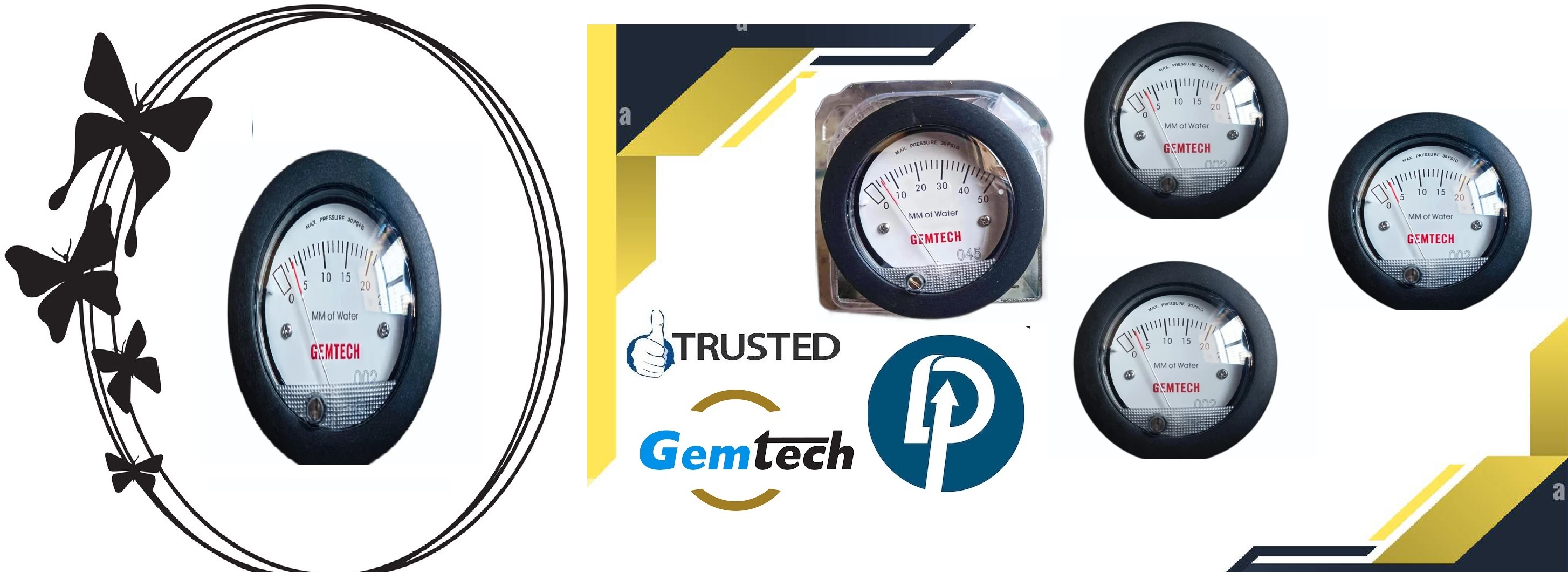

GEMTECH Mini Differential Pressure Gauge Range 0-25 MM
GEMTECH Mini Differential Pressure Gauge Range 0-25 MM
Combining High Accuracy, Compactness, Dependability, And Low Cost Combining Clean Design, Small Size And Low Cost With Enough Accuracy For All But The Most Demanding Applications Our GEMTECH Mini Differential Pressure Gauge Offers The Latest In Design Features For a Dial Type Differential Pressure Gage. It Is Our Most Compact Gage But Is Easy To Read And Can Safely Operate At Total Pressures Up To 30 PSIG.
NIST CALIBRATION Available In Product Configurator.
PRODUCT APPLICATIONS
Room Positive Pressure Sensing
Local Indication on Filter Status
Face Velocity on Fume Hood
Duct Pressures
Cabinet Air-Purging
Air Samplers
Electronic Air Cooling Systems
Laminar Flow Hoods
SPECIFICATIONS
Service:Air And Compatible Gases.
Wetted Materials:Consult factory.
Housing:Glass Filled Nylon; Polycarbonate Lens.
Accuracy:±5% of FS at 70°F (21.1°C).
Pressure Limits:30 psig (2.067 bar) Continuous To Either Pressure Connection.
Temperature Limits:20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation:Diaphragm In Vertical Position. Consult Factory For Other Position Orientations.
Process Connections:Barbed, for 3/16" ID Tubing (Standard); 1/8" Male NPT (optional).
Weight:6 oz (170.1g).
Agency Approvals:Meets The Technical Requirements Of EU Directive 2011/65/EU (RoHS II).CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.
FEATURES
Removable Lens And Rear-Housing Provides Easy, Cost-Effective Servicing
Accuracy And Value Provides An Excellent Solution For OEM And User Applications
Durable Housing Materials Make It Well-Suited For Rough Environments And Total High Pressure
GEMTECH Mini Differential Pressure -Gauge Range 0-50 MM
GEMTECH Mini Differential Pressure -Gauge Range 0-50 MM
Combining High Accuracy, Compactness, Dependability, And Low Cost Combining Clean Design, Small Size And Low Cost With Enough Accuracy For All But The Most Demanding Applications Our GEMTECH Mini Differential Pressure Gauge Offers The Latest In Design Features For a Dial Type Differential Pressure Gage. It Is Our Most Compact Gage But Is Easy To Read And Can Safely Operate At Total Pressures Up To 30 PSIG.
NIST CALIBRATION Available In Product Configurator.
PRODUCT APPLICATIONS
Room Positive Pressure Sensing
Local Indication on Filter Status
Face Velocity on Fume Hood
Duct Pressures
Cabinet Air-Purging
Air Samplers
Electronic Air Cooling Systems
Laminar Flow Hoods
SPECIFICATIONS
Service:Air And Compatible Gases.
Wetted Materials:Consult factory.
Housing:Glass Filled Nylon; Polycarbonate Lens.
Accuracy:±5% of FS at 70°F (21.1°C).
Pressure Limits:30 psig (2.067 bar) Continuous To Either Pressure Connection.
Temperature Limits:20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation:Diaphragm In Vertical Position. Consult Factory For Other Position Orientations.
Process Connections:Barbed, for 3/16" ID Tubing (Standard); 1/8" Male NPT (optional).
Weight:6 oz (170.1g).
Agency Approvals:Meets The Technical Requirements Of EU Directive 2011/65/EU (RoHS II).CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.
FEATURES
Removable Lens And Rear-Housing Provides Easy, Cost-Effective Servicing
Accuracy And Value Provides An Excellent Solution For OEM And User Applications
Durable Housing Materials Make It Well-Suited For Rough Environments And Total High Pressure
GEMTECH Mini Differential Pressure Gauge Range 0-100 MM
GEMTECH Mini Differential Pressure Gauge Range 0-100 MM
Combining High Accuracy, Compactness, Dependability, And Low Cost Combining Clean Design, Small Size And Low Cost With Enough Accuracy For All But The Most Demanding Applications Our GEMTECH Mini Differential Pressure Gauge Offers The Latest In Design Features For a Dial Type Differential Pressure Gage. It Is Our Most Compact Gage But Is Easy To Read And Can Safely Operate At Total Pressures Up To 30 PSIG.
NIST CALIBRATION Available In Product Configurator.
PRODUCT APPLICATIONS
Room Positive Pressure Sensing
Local Indication on Filter Status
Face Velocity on Fume Hood
Duct Pressures
Cabinet Air-Purging
Air Samplers
Electronic Air Cooling Systems
Laminar Flow Hoods
SPECIFICATIONS
Service:Air And Compatible Gases.
Wetted Materials:Consult factory.
Housing:Glass Filled Nylon; Polycarbonate Lens.
Accuracy:±5% of FS at 70°F (21.1°C).
Pressure Limits:30 psig (2.067 bar) Continuous To Either Pressure Connection.
Temperature Limits:20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation:Diaphragm In Vertical Position. Consult Factory For Other Position Orientations.
Process Connections:Barbed, for 3/16" ID Tubing (Standard); 1/8" Male NPT (optional).
Weight:6 oz (170.1g).
Agency Approvals:Meets The Technical Requirements Of EU Directive 2011/65/EU (RoHS II).CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.
FEATURES
Removable Lens And Rear-Housing Provides Easy, Cost-Effective Servicing
Accuracy And Value Provides An Excellent Solution For OEM And User Applications
Durable Housing Materials Make It Well-Suited For Rough Environments And Total High Pressure
